Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine
Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine

Large Image :  Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine

Product Details:
Place of Origin: China
Brand Name: ZHIYIN
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD/Negotiate price/sets
Packaging Details: Packed in standard export wooden cases
Delivery Time: 15days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10sets/month

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine

Description
Product Name:: Steam Generator Type:: Electric Heating/Gas Heating
Structure:: Electric Heating Tube Pressure:: 0.4/0.7Mpa
Fuel:: Heating Water Output:: Steam
Material: Stainless Steel Function:: Product Steam
Power:: 9KW//24KW/48KW/72KW Rated Evaporation:: 50kg/60kg/100kg/200k/300k/500kg Per Hour

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine Customized

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 0

Parameter:

1.Rated evaporation:(Kg/h)50 2.Design pressure(MPa):0.72
3.Nominal steam pressure(MPa):0.4-0.7 4.Maximum allowable working pressure(MPa):0.7
5.Design temperature:171.4℃ 6.Nominal steam temperature:170.4℃
7.Puncture test pressure(MPa):0.92 8.Volume(m³)0.04

9.Water capacity:29L.

Working medium: water, water vapor

10.Rated power:36(KW)
11.Rated pressure:380V 12.Rated current:9.4A
13.Net weight:58KG 14.Transport dimension:70*50*130

Boiler steam powered generator is acceptable for OEM or ODM service.

The 24kw steam generator working with 380 voltage is mainly composed of a water supply system, an automatic control system, a furnace and a heating system, and a safety protection system.

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine Customized

Electric boiler is by electric heating tube set water tank of water boiling, producing steam convection, and through the league into the steam chamber

100-1000kg Automatic Oil-Gas Steam Generator Electric Heating Food Thawing Steam Boiler Custom

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 1

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine Customized
The generator 24kw is through an automatic control device to ensure that the liquid controller or high, medium and low electrode probes feedback control the opening and closing of the water pump during operation, the length of water supply, and the heating time of the furnace; The maximum steam pressure is set, and the water level of the furnace is continuously decreased with the continuous output of steam. When it is in the low water level (mechanical type) and the middle water level (electronic type), the water pump automatically replenishes the water. When the water level is high, the water pump stops the water supply.

At the same time, the electric heating tube in the furnace continues to heat, and the source continuously generates steam. The pointer pressure gauge on the upper part of the panel or the top part immediately displays the steam pressure value, and the whole process can be automatically displayed by the indicator light.

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 2

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 3Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 4

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine Customized

Model ZYSG0.012-0.7 ZYSG0.016-0.7 ZYSG0.025-0.7 ZYSG0.035-0.7 ZYSG0.05-0.7 ZYSG0.06-0.7 ZYSG0.08-0.7 ZYSG0.1-0.7 ZYSG0.125-0.7
Project UNIT
Rated evaporation Kg/h 12 16 25 35 50 60 80 100 125
Rated working pressure MPa 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7 0.7
Saturated steam temperature 170 170 170 170 170 170 170 170 170
Input power KW 9 12 18 27 36 40 54 72 90
Input current A 14 18 27 41 54 60 81 108 135
Rated voltage V 3N AC 50Hz 380V
a Main steam valve diameter DN 15 15 15 15 15 15 15 25 25
b Safety valve diameter DN 15 15 15 15 15 15 15 25 25
c Inlet diamater DN 15 15 15 15 15 15 15 15 15
d Blowoff valve diameter DN 25 25 25 25 25 25 25 20 20

Overall size
L mm 540 540 540 540 650 650 650 800 800
W mm 650 650 650 650 660 660 660 800 800
H mm 980 980 1100 1100 1380 1380 1380 1580 1580
Weight kg 90 95 105 110 130 130 135 195 195
According to customer order requirements, the company can provide customized products for specific power supply in the world.

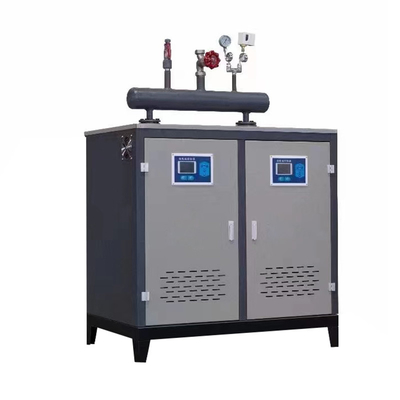

A.Electrically heated steam generator

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 5

Model number ZY-CH24 ZY-CH36 ZY-CH48 ZY-CH72 ZY-CH144
Outlet pressure (Mpa) 0.7 0.7 0.7 0.7 0.7
Rated voltage (V) 380 380 380 380 380
Rated power (kw) 24 36 48 72 144
Rated steam capacity (kg/h) 32 50 65 100 200
Saturated steam temperature (℃) 170 170 170 170 170
Steam pipe diameter (mm) 20 20 20 20 20
Blowdown pipe diameter (mm) 20 20 20 20 20
Drain pipe diameter (mm) 20 20 20 20 20
Thermal efficiency 98% 98% 98% 98% 98%
Processing customization Customizable Customizable Customizable Customizable Customizable
Shape length (mm) 850 850 850 850 1600
Profile width (mm) 820 820 820 820 850
Profile height (mm) 1350 1350 1350 1350 1400

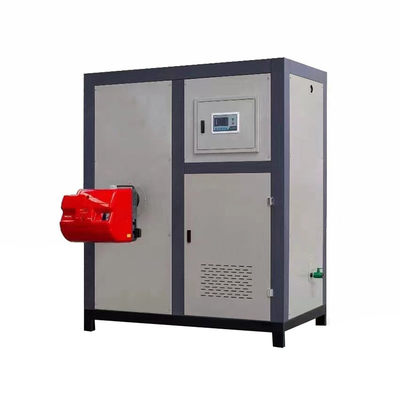

B.Gas heated / LPG heated/ Diesel heated steam generator

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 6

Model number ZYSG0.1-07(Y/Q) ZYSG0.2-07(Y/Q) ZYSG0.3-07(Y/Q) ZYSG0.5-07(Y/Q) ZYSG0.6-07(Y/Q) ZYSG1.0-08(Y/Q)
Rated evaporation (kg/h): 100 200 300 500 600 1000
Rated pressure (Mpa): 0.7 0.7 0.7 0.7 0.7 0.7
Thermal efficiency (%): 95% 95% 95% 95% 95% 96%
Steam diameter Dn (mm): 25 25 25 40 25X2 40
Inlet diameter Dn (mm): 20 20 20 25 20 25
Blowdown diameter Dn(mm): 40 40 40 25 40 25
Safety valve diameter Dn (mm): 20 20 20 32 20 40
Chimney diameter Dn (mm): Φ140 Φ140 Φ159 Φ219 Φ159X2 Φ300
Fuel consumption Light diesel (kg/h): 6.6 13 18 31 34 62
Natural Gas (NMP): 7.5 15.5 23 39 46 76
Liquefied gas (kg/h): 6 11.5 14 24 29 59
Size (including burner, accessories)



Length (mm): 1350 1700 2100 2300 2800 3150
Width (mm): 800 1600 1600 1800 2400 2500
Height (mm): 1550 2400 2400 2800 2500 2800
Packing weight(kg) 650 1100 1100 1700 2100 3500

C.Biomass steam generator machine

Biomass Pellet Fuel Steam Generator Commercial Industrial Boiler Automatic 500kg1000kg Steam Boiler Thawing Machine 7

Model number ZYH0.1-07M ZYH0.2-07M ZYH0.3-07M ZYSG0.6-07M ZYXG1.0-07-SC ZYSG1.0-08-Single system
Rated steam capacity (kg/h): 100 200 300 600 1000 1000
Rated pressure (Mpa): 0.7 0.7 0.7 0.7 0.7 0.7
Thermal efficiency (%): >92% >92% >92% >92% >92% >92%
Power Supply (VIHZ): 220V/50Hz 220V/50Hz 220V/50Hz 220V/50Hz 380V/50Hz 380V/50Hz
Body dimension: 1700x850x1805 1850x1050x2305 1700x1100x2300 3000x1100x2300 2900x2600x2500 3400x1800x3000
External dust collector an: 330x1650 80x80x2300 1100x850x2300 80x80x2300(*2) Built-in integration 1700*950*1200mm
Bunker capacity (kg): 110 90 150 280 480 400
Chimney diameter (m): Φ140 Φ140 Φ219 Φ219 Φ273 Φ273
Fuel consumption per hour (kg/h): 10-15 20-25 30-35 70-80 150-180 150-180
Packing weight (kg): 870 980 1300 2600 3600 3500
