Product Details:
|
| Name: | Quick-freezing Machine | Internal Operating Temperature: | +35℃~-35℃ |
|---|---|---|---|
| Freezing Time: | Adjustable 15-45min | Freezing Capacity: | 100-2000kg/h |
| Condition: | New Type | Cold Product Feeding Temperature: | <25℃ (central Temperature) |
| Feature: | Easy Clean | Gurantee: | 1 Year |
| High Light: | 2000kg/H Vegetable Food Freezing Machine,Fluidized Food Freezing Machine,IQF Vegetable Food Freezing Machine |
||

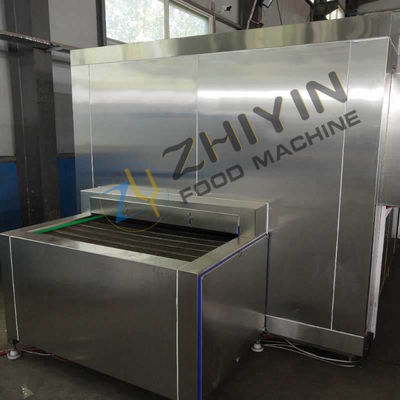

100-2000kg/h Easy Clean Energy Saving Vegetable Food Freezing Machine
Fluidized quick-freezing machine combines the latest technology of other same products from Sweden and Canada, realizing a real fluidized and perfect IQF effect. Suitable for processing fruits and vegetables slices, dices and etc. Mainly freezing the fruits and vegetables.
It is used for conditioning food, noodles, meat, aquatic products, dishes, ice cream, etc., such as bun, bread, tuna, lobster, etc.
| Please contact us about how to place an order: | |
| Contact Person: | Mrs. Lisa |
| Job Title: | Manager |
| Business Phone: | 086 15249674563 |
| WhatsApp: | 086 15249674563 |
| WeChat: | 086 15249674563 |
| Skype: | 086 15249674563 |
| Email: | Sale@frenchfriesline.com/Lisa@frenchfriesline.com |
Feature of IQF machine
1 Library board adoptes double staninless steel sandwich polyurethane insulation board, insulation preformance is good,internal compnents using high-quality staninless steel SUS304,easy cleaning,HACCP requirements.
2 Staninless steel mesh belt, the surface smooth,easy to clean.
3 Using water forst, ensure clean sanitation.
4 Inverter control to realize infiniterly adjustable-speed,frozen goods frozen time is adjustable,can be applied to a variety of processing of frozen goods
Specification of food freezing machine
|
Model
|
Freezing capacity
kg/h
|
Cold consumption
kw
|
installed power
kw
|
Length
m
|
width
m
|
Height
m
|
Mesh belt width
m
|
|
ZY100
|
100
|
15
|
2.3
|
7
|
1.5
|
2.1
|
1
|
|
ZY150
|
150
|
21.5
|
3
|
8
|
1.8
|
2.2
|
1.3
|
|
ZY300
|
300
|
43.5
|
6.5
|
11.2
|
2.3
|
2.3
|
1.8
|
|
ZY500
|
500
|
75
|
10.3
|
13.5
|
3
|
2.5
|
2.5
|
|
ZY1000
|
1000
|
142
|
19.8
|
21.5
|
3
|
2.5
|
2.5
|
Advantage of food freezing machine
1 This equipment adopts high-pressure axial fan, which has the features of large air volume and high wind pressure.
2 Simple structure,convenient, long sercive life.
3 Library board adoptes double staninless steel sandwich polyurethane insulation board, insulation preformance is good,internal compnents using high-quality staninless steel SUS304,easy cleaning,HACCP requirements.
Details of food freezing machine
|
NO.1 SSD-300 scheme design: |
|
| Internal operating temperature: | +35℃~-35℃ |
| Cold product feeding temperature: | LT;25℃ (central temperature) |
| Frozen product discharge temperature: | -20℃ (central temperature) |
| Freezing time: | adjustable from 15 to 45 minutes |
| Energy saving measures: | |
| The inlet and outlet of the material shall be equipped with a wind shield to avoid the loss of cooling capacity caused by the direct blowing of the cold air out of the insulation layer and effectively reduce the loss of cooling capacity. In addition, a separate buffer room can be set. | |
500kg/hour Tunnel Type Fries Frozen Machine, Shrimp Tail Seafood Frozen Machine
| NO.3 Main accessory Production Distribution list Parameters | ||
| No | Item | Specification |
| 1 |
Library entry |
Top, bottom t=120mm, inner 0.6mm, outer0.8mm stainless steel plate |
|
Side plate t=120mm inner 0.6mm, outer0.8mm stainless steel plate |
||
|
Door: inner 0.6mm, outer0.8mm stainless steel plate |
||
|
Wind deflector and windshield: 1.5mm stainless steel plate |
||
|
Auxiliary materials (styrofoam rubber, sealant, rubber plugging) |
||
| 2 |
Evaporator |
The aluminum tube evaporator is of antirust aluminum tube and aluminum sheet structure with good corrosion resistance. |
| 3 |
Mesh belt |
Wire, thread shaft, chain:304 stainless steel, adopting high-strength stainless steel wire:φ1.3mm high-strength stainless steel wire, and thread shaft:φ8mm |
| 4 |
Fan |
304Stainless steel air duct, die-cast aluminum impeller, motor protection grade IP55 |
| 5 |
wind deflector |
304 stainless steel plateｔ＝1.5mm |
| 6 |
Frame |
All 304 stainless steel, argon arc welding, corrosion resistance, easy to clean, tensioning device, rotation shaft adopts stainless steel with high molecular polyethylene, wear resistance and corrosion resistance |
| 7 |
The base framework |
Galvanized side control, corrosion resistant, with adjustable anchor bolts to facilitate on-site mediation level |
| 8 |
Standard component |
The door buckle is made of zinc aluminum alloy. Bolts, nuts, rivets and other hardware are all 304 stainless steel national standard belt certified products. |
Service:
We own Professional Engineers, Aftersales Staff and a young strong Sales Teams.Based on "People Oriented, Leading Technology, Honest Management", we will offer you reliable products and best service.
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. We accept testing machine with fresh potato in our factory before delivery.
