|Name:||Puffing Snacks Production Line||Function:||Puffed Food Machine|
|Material:||Food Grade Stainless Steel|
Snacks Puff Extruder Machine,
Corn Flakes Puff Extruder Machine,
350kg/H Puff Extruder Machine
|Industrial Artificial Rice Extruder Rice Puffing Slaking Production Line|

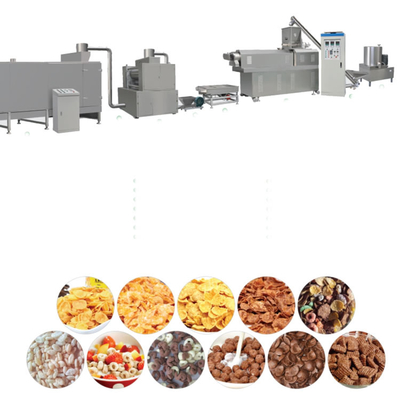

100kg 200kg 300kg 400kg Puffed Corn flakes Machine puffing snacks production line-Product Configuration List
|1||Mix machine||1260*800*1200mm||75kw||Used for mixing raw corn flour with a small amount of liquid|
|2||Screw feeding machine||3100*590*2200mm||0.75kw||The mixed material is conveyed to the feed hopper of the extruder by a screw conveyor.|
|3||Twin screw extruder||5000*1200*1500mm||165kw||The twin-screw dry extruding extruder is used to extrude the mixed corn flour instantaneously and produce high expanded granules.|
|4||Vibrating screen||1530*820*790mm||0.55kw||Removal of debris after the formation of highly expanded particles.|
|5||Air pressure conveyor||1200*530*2500mm||1.1kw||The high compression particles are transported to the Tableting machine by air transport mode.|
|6||High temperature oven||8710*1490*1845mm||1.5kw||The corn flakes are puffed again at high temperature in the oven to achieve a more.|
|7||Cooling line||5000*500*750mm||0.75kw||After spraying sugar on the cornflakes out of the dryer after cooling.|
The twin-screw extruder is composed of two co-rotating high-torque screws that mesh with each other. Due to the wide design range of the screw and barrel, various screw profiles and process functions can be set according to the process requirements, so the twin-screw extruder can be High-strength flexibility ensures transportation, compression, mixing, cooking, shearing, heating, cooling, pumping, molding, etc.
The purpose of extrusion processing is to physically and chemically convert the viscous polymer medium through precise control of processing conditions , And produce high-quality structured products.
|Please contact us about how to place an order:|
|Contact Person:||Mrs. Lisa|
|Business Phone:||086 15249674563|
The new generation of twin-screw extruder adopts the latest modular design concept, realizes the multi-purpose extrusion system of one machine, and is perfectly connected with upstream and downstream supporting equipment.
The intelligent control system is based on different production process requirements to realize the system to respond to different productions.
The flexibility and visualization of the adjustment of process parameters can be widely used in many fields in the food industry. It is an ideal choice for processing breakfast cereals, snack foods, food raw materials, modified starches, pet foods, etc.
