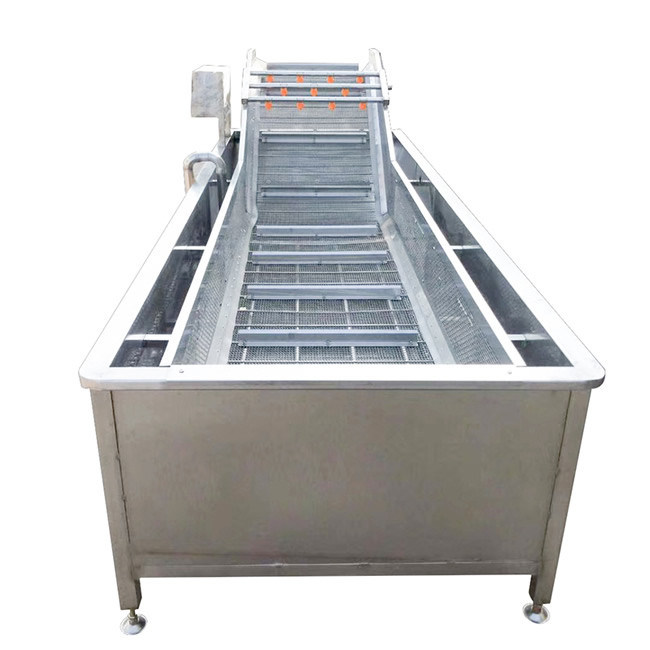

1000kg/H Bubble Washing Machine

1000kg/H Bubble Washing Machine
1000kg/H Bubble Washing Machine 1000kg/H Bubble Washing Machine

Large Image :  1000kg/H Bubble Washing Machine

Product Details:
Place of Origin: Shandong,China
Brand Name: No
Certification: CE
Model Number: Bubble-W1
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD3500-6900/Sets
Packaging Details: Standard export wooden cases
Delivery Time: 15-40Days
Payment Terms: T/T, Western Union
Supply Ability: 3setS/Month

1000kg/H Bubble Washing Machine

Name: 1000kg/h Sus 304 Fresh Vegetable Fruits Cleaning Processing Machinery Voltage: 220v/380v
Weight: 500kg Power: 5.1KW
Dimension(L*W*H): 5000*1200*1300mm Machinery Function: 1200-1500kg/h
Advantage: Energy Saving HS Code: 8438600000
Machine Material: Stainless Steel 304 Made Usage: Vegetable Fruit Washing Cleaning
Package: Standard Wood Packaging Case Speed: Adjustable
Belt Width: 800mm/Customized Warranty: 1 Year
Application: Potato Chips Making
High Light:

1000kg/h Bubble Washing Machine


sus304 Bubble Washing Machine


5.1KW vegetable cleaner machine

                                                        1000kg/h sus 304 fresh vegetable fruits cleaning processing machinery



Air bubble vegetables and fruit washing machine is mainly used for washing leafy vegetables like cabbages, Chinese chives, spinach etc., stem vegetables like carrots, celeries etc. and fruits. Both complete materials and materials in pieces can be washed.

The Mushroom Washer use surfing, bubbling, water spray to wash fruits and vegetables, can clean the soil on the surface of the vegetable and fruit completely , can also add the right amount of reagents for sterilization to wash out the effect of pesticide residues on the surface of the vegetables and fruits.

The Mushroom Washer adopt stainless steel SUS304 material (except the motor, bearings and other standard parts),completely in line with food hygiene requirements, The machine is equipped with bubble generator to make the materials tumble, remove pesticide residues on the surface of material. At the same time,you can add the right amount of potions to disinfection of solid color, floats are available to overflow from the overflow tank, sediment from the discharge outlet to achieve the purpose of cleaning.

The frame of machine is made of food grade SUS304 stainless steel, complying with hygiene requirement and easy to maintain.
It consists of motor & speed reducer, water pump, air pump, conveyor belt, washing tank, water jet, water pipe, valve, control panel, etc.
Water recycling system is equipped under the conveyor belt. Filter sieve will stop the impurity to enter into the water tank.


Model Dimension Motor power Mesh band width Capacity
QPJ-300 300*125*130cm 3.6kw 800mm 400-500 kg/h
QPJ-400 400*125*130cm 4.1kw 800mm 600-800 kg/h
QPJ-500 500*125*130cm 5.1kw 800mm 1200-1500 kg/h
QPJ-600 600*125*130cm 5.5kw 800mm 1800-2000 kg/h



It can be used in frozen food processing industries, pickles processing industries, aquatic food processing industries etc.

The machine uses air bubbles to clean materials. High-pressure bubbles generated from bubble generator in the pool can wash materials like handwashing. Materials, turning up and down in the water, are slightly rubbed and then thoroughly washed. Washed materials are automatically lifted to the next process by the conveyor belt.



1.Spraying valves above the pool can clean materials from above.
2.Spraying valves at the lifting part can be connected to the tap water for secondary cleaning of materials.
3.Washed materials are automatically lifted and conveyed to the next process or container.
4.You can control the speed freely by the frequency converter.
5.Customization is welcomed.
6 Food grade SUS304 stainless steel
7 High cleaning ability, high washing rate



1 Equipped with a bubble generator to make the objects roll over
2 Equipped with VFD to better adjust the belt speed
3 Equipped with separate filter tank and water recycling system
4. The design of Separate auxiliary tank is easy for transport and good for water circulation
5. Ozone Generator to disinfect and sterilize (OPTIONAL)
6. Water circulation device is installed to save water(OPTIONAL)
7. Various Electrical Voltage can be customized made



1) Professional advice and extensive experience help to choose the machine.
2) Lifelong maintenance and thoughtful technical support
3) Test run and install video/CD, Maunal book, toolbox and machine to send.
4) Our engineers can install the machine abroad
5) One year quality assurance Material and process defects for equipment and parts are guaranteed for one year. Any parts that need to be replaced will be shipped free of charge, but will not include the installer. The warranty does not cover abuse or user error.



1 Ozone generator for sterilization and disinfection and decomposition of pesticide residues
2 Ultrasonic module through ultrasonic vibration to clean the products completely
3 Air fans to be added at the outlet for simple frying after washing
4 Lifting device can be added to life the mesh belt for easy cleaning of the tank
5 Any other functions you need, tell us freely, we will design special machine for you
